A Cell Is a Control: How VS Rows Turn Any Grid Cell Into Any Editor

The Premise, Restated for Cells

In a hand-built WinForms screen, a cell is whatever the designer decided during development: text, checkbox, combo, or another compiled type. Turning that text cell into a searchable lookup, making it read-only for one group of users, or adding an AI proofreader usually means reopening the designer, wiring events, rebuilding, testing, and redeploying.

ITS Framework moves that decision into data. For each column in a view, one VS row can carry:

• The cell type through clt.
• A pointer to editor metadata through edtr_id.
• Static and expression-driven read-only rules.
• Fonts, colors, alignment, format, wrapping, and width.
• Row-scoped variations that can change how the same column behaves for different records.

The number of fields is small compared with the surface of the Visual Studio designer. Their strength comes from composition. A cell type, an editor definition, a filter, a permission rule, and a conditional style can be resolved together at runtime to express behavior that would otherwise be scattered across designer files and event handlers.

The cell is not a passive rectangle. It is a control whose contract happens to be stored in a row.

The clt Field: Cell Types in One Integer

Every configured column style carries a clt integer. It is the discriminator that tells CntrlG which DataGridViewCell behavior or CellCtrlEdtr subclass to use.

clt	Renders as	Interaction	Typical use
0	Plain text	Single-line edit	General string columns
1	Combo box	Selects from a bound dataset	Foreign keys and enumerations
2	Date or time picker	Typed date editing	DateTime columns with a custom format
3	Masked numeric editor	Validated numeric entry	Currency, percentages, and quantities
4	Multiline text	Wrapped, auto-height edit	Notes, descriptions, and addresses
5	Formatted display	Read-only	Computed and as-if fields
6	Hyperlink or active cell	Click executes an action	Open document, send email, or show map
7	Link plus inline editor	Dialog edits and writes back	Searches, calculators, subforms, and AI editors
8	Tri-state checkbox	Boolean edit	Nullable booleans
9	Image or thumbnail	Display or preview	Photos and icons resolved from type_id

The catalog is intentionally compact and extensible. A business module can register a focused CellCtrlEdtr subclass for a color picker, signature capture, or barcode scanner. Most screens, however, rely on only a handful of established types: text, combo, date, hyperlink, and custom editor.

The consuming module does not need a switch statement for those established behaviors. Setting clt=1 and pointing edtr_id to a lookup definition is enough for the runtime to materialize a working combo cell.

Related Video: The Same Cell Contract in a Pivot Row

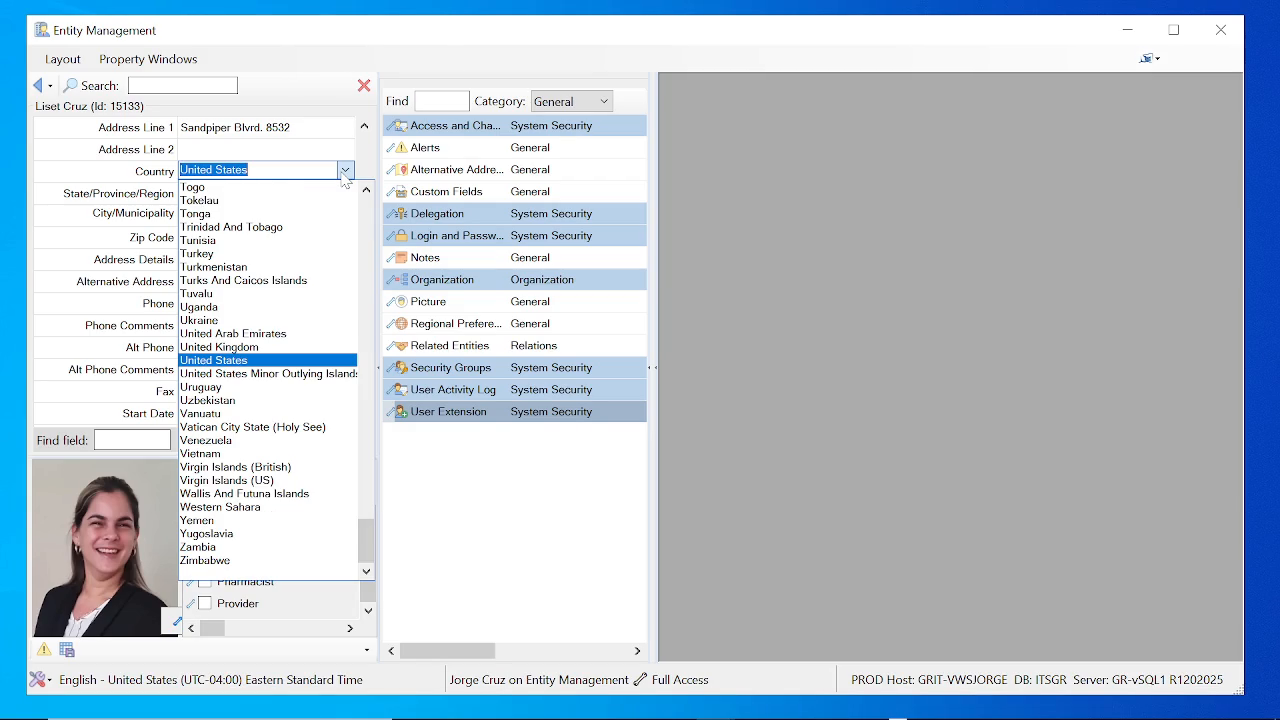

This live Entity Management example shows a User entity through CntrlP. The row is projected vertically, but its properties retain the same configured cell editors used by CntrlG: the orientation changes while the editor contract stays intact.

▶Watch 15-second demo

What to watch: User entity at 00:00 · ComboBox at 00:03 · checkboxes at 00:08 · date picker at 00:10 · audit history at 00:12. The production capture was reviewed before publication and confidential information was removed.

Populating Cells: Three Reusable Recipes

Free text, formatted and validated

clt = 0
cf  = "### ### ####"
mw  = 100
w   = 140
ro  = false
Val = regular expression + multilingual Message Code

The plain text editor formats during painting, validates on commit, and can display a red error indicator with a translated message when the value fails its rule. The same recipe can use C2 for currency or MM/dd/yyyy when a date is intentionally rendered as text.

Combo bound to a lookup dataset

clt       = 1
edtr_id   = CountryLookup
dataset   = Countries
value     = id
display   = name
secondary = code + " - " + name
filter    = active=1 AND tenant_id={|tenant_id|}

The editor metadata identifies a named DAL dataset, value and display members, and an optional filter. Tokens in that filter are resolved from the current DataRow. The combo can therefore use cached reference data, constrain its choices to the row context, and write the selected key directly into the underlying DataColumn.

Search dialog, autocomplete, or inline editor

clt       = 7
edtr_id   = MemberSearch
view      = VMemberSearch
dataset   = Members
mapping   = id|name:member_id|member_name
selection = single

The framework-provided CellCtrlEdtrSearch opens the configured view, searches its dataset, and projects the selected values back into the current row according to the mapping. The dialog is itself a CntrlV; its columns are CntrlG cells, and any of those cells can open another configured editor. The mechanism is recursive because every level consumes the same contracts.

AI-Assisted Text as a First-Class Cell Capability

The L2 ITSAI service can sit behind the same editor contract. A reusable CellCtrlEdtrAIProof implementation sends the current value to the AI service and returns a corrected or enriched value. An Edtr row supplies the prompt template, model selection, execution mode, and any audit-column mapping.

VS.clt     = 7
VS.edtr_id = AI_MedicalProofread

Edtr prompt        = MedicalProofread
Edtr mode          = on-demand
Edtr original      = ai_original
Edtr suggested     = ai_suggested
Edtr accepted_by   = ai_accepted_by

A clinical-notes cell can behave like an ordinary multiline editor until the user clicks its AI action. The framework sends the value, receives a proofread version and structured suggestions, and replaces or augments the value according to configuration. If audit fields are mapped, the original, suggestion, and accepting user remain available in the same row contract.

Nothing is hard-coded for the clinical-notes column. Converting a plain text cell into an AI-assisted cell means selecting an existing AI editor row and changing its VS reference. Translation, summarization, classification, and entity extraction use the same infrastructure; only the Edtr definition changes.

This configuration does not remove the need for governance. Sensitive data, prompt design, human review, model access, audit requirements, and failure behavior must still be defined at the service and policy levels. The point is that once a governed capability exists, individual views can consume it consistently through metadata.

Five Orthogonal Ways to Say Read-Only

Read-only behavior is not a single flag. IsReadOnly(cell, row) resolves several sources that answer different business questions:

1. Column-level ro: the column is always read-only in this view. A combo cell with ro=true can still resolve and display the label for its stored identifier.
2. View-level ro: the entire grid is read-only.
3. Row-level expression: D.FBool("no_updt") and row.EvalRO(expr) can lock a closed period, sealed record, or row owned by another tenant.
4. Per-cell expression: a cached conditional style can set ro=true only when the current row matches a filter. A role-specific style can resolve the same condition differently for a supervisor.
5. Status validator: ambient WFValidator state can feed ReadOnlyByCntxt, allowing workflow context to suspend editing until a required command completes.

The chain is consulted when cells paint, begin editing, and execute actions. Because every input is data, the policy can vary by view, row, role, tenant, workflow state, and cell without embedding each combination in module code.

That flexibility increases the importance of diagnostics. Administrators need to see which rule won, which filter matched, and which permission or context made a cell read-only. Metadata-driven behavior is maintainable only when the runtime makes its resolution path observable.

Cell Styling: A Cell Is a Control

The properties a developer normally sets on a Label, TextBox, DateTimePicker, or ComboBox also exist in the VS contract:

• Colors: bc and fc for normal background and foreground; sbc and sfc for selected cells.
• Font: f, fs, and fz for family, size, and style, merged with the grid defaults by ITSUtls.GetCellStyle.
• Alignment: a encodes the nine DataGridViewContentAlignment values.
• Wrapping: wr enables multiline display and row auto-height.
• Header appearance: header color and font fields allow the label to have its own visual hierarchy.
• Formatting: cf carries .NET format strings; a language-aware format can respect the active session culture.
• Conditional overrides: row-filtered style records can change any of these values for matching data.

The same database column can therefore appear differently in two views. VClaims might render amount as ordinary right-aligned currency. VAccrualReport can show the same field in bold red above $50,000, gray at zero, and with a tooltip that explains the aging bucket. The underlying value remains the same DataRow field; each view supplies its own visual contract.

DataColumn + current DataRow
        ↓
baseline type and style
        ↓
VS column definition
        ↓
conditional row/cell overrides
        ↓
permissions + workflow context
        ↓
materialized DataGridViewCell + CellCtrlEdtr

Column Groups and Navigation Shortcuts

Enterprise grids can contain dozens of columns. ITS Framework allows the bound DataTable to include marker columns whose names follow a convention such as cl-sep_Financial_, cl-sep_Compliance_*, or cl-sep_Audit_**. They carry no business value; a DAL query can introduce one with a projection such as:

SELECT
    claim_id,
    claim_status,
    NULL AS [cl-sep_Financial_*],
    billed_amount,
    paid_amount,
    NULL AS [cl-sep_Compliance_**],
    review_status,
    reviewed_by
FROM dbo.Claim;

During binding, CntrlV.Nav() discovers the markers and populates BtnNav with entries that move horizontal scrolling to the next visible column. A trailing * can expose a fixed toolbar shortcut. A trailing ** can identify a floating shortcut whose label follows the section the user most recently visited.

The marker can also define a narrow tinted separator, creating a visual spine between logical groups. Adding a group is therefore a query-contract change rather than a new C# navigation handler. Because the query is resolved through the DAL, the available groups can still respect tenant and permission context.

What This Changes for the Super-User

A super-user who understands the business and can work safely with the Form Editor can perform changes that would otherwise become development stories:

• Add a column definition with its label, format, type, width, alignment, and read-only rule.
• Convert text to a lookup by changing clt and selecting an edtr_id.
• Open a configured search dialog from a cell and map selected values back to the row.
• Attach a governed AI proofreading or translation editor.
• Lock a row or cell when a business expression is true.
• Add a Val rule for required values, positive amounts, email syntax, or contract dates.
• Add a VF filter, a Cmm command, or an MC translation.
• Publish role-specific column presets and navigation groups.

When DAL.EvDSUpdated invalidates and refreshes the relevant configuration, a change can take effect at the next Init, even during an active session. The delivery bottleneck shifts away from repeated screen plumbing and toward correct business definitions.

That does not mean configuration should bypass governance. Production metadata should be validated, audited, promoted, and reviewed according to its risk. The advantage is not the absence of control; it is that recurring UI behavior has one governed representation instead of many bespoke implementations.

Where the Pattern Fits—and Where It Does Not

The ITS Framework desktop runtime targets .NET 10 for Windows and runs on controlled application servers close to SQL Server, while users connect through RDP or RDS. The WinForms runtime, DAL, metadata caches, and database operate inside a trusted enterprise environment. The client receives pixels, so this internal cell-to-database path does not require an HTTP/JSON boundary.

That environment makes rich DataSet contracts, cached lookup tables, direct WinForms binding, and structured persistence through stored procedures and UDTT or XML parameters economically sensible. It is a deliberate architecture for that deployment model, not a blanket recommendation.

A public browser application, offline client, untrusted network, or independently versioned partner integration needs explicit API contracts, transport security, independent versioning, and authorization boundaries. A metadata-driven cell runtime can still inspire those systems, but it should not erase boundaries that their operating environment requires.

There are also internal tradeoffs:

• Invalid metadata can move failures from compilation to initialization or screen-open time.
• Expression-driven permissions and styles require traceable precedence and diagnostic tools.
• New cell behavior still requires a reusable implementation before configuration can select it.
• AI editors require privacy controls, auditability, failure handling, and human review appropriate to the domain.
• Super-user access must be constrained by permissions and a disciplined promotion process.
